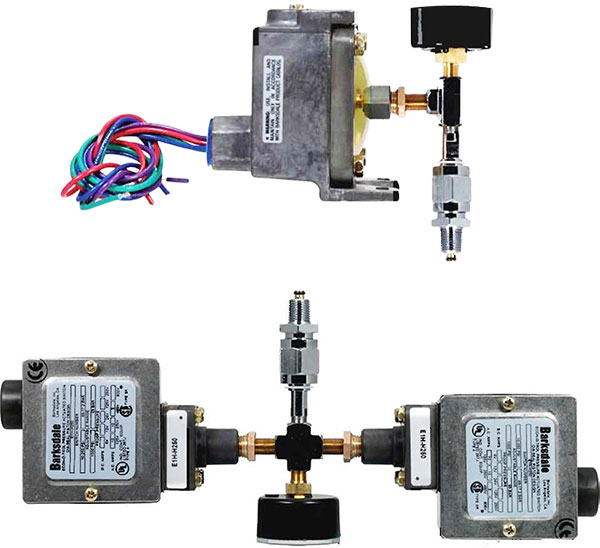

Pressure/Vacuum Pipeaway Assemblies with Switches - Accessories

High/low pressure switches for oxygen, nitrous oxide, nitrogen, medical air and carbon dioxide shall be Ohio Medical® series. The Pressure switch incorporates Underwriters Laboratories Inc. listed single pole double throw snap action switching elements. The switch shall be in a Nema 4 water-tight housing and have an adjustable range of 3.90 to 80 psig and have an approximate actuation value (differential) of 1.60 to 3.40 psig. The switch shall be oxygen cleaned and have a continuous inductive rating of 10 amps 125 or 250 volts AC, 3 amps 480 volt AC. The switch may be wired "normally open" or "normally closed." It has a 1/4" NPTF connection and will be fitted with a quick connect to facilitate field service and testing.

Spec Sheet

Pressure/Vacuum Pipeaway Assemblies with Switches - Accessories

Vacuum - VAC	263742	lbs
Vacuum - WAGD	263745	lbs
Low Pressure - O2	263741	lbs
Low Pressure - Air	263743	lbs
Low Pressure - N20	263744	lbs
Low Pressure - CO2	263747	lbs
Low Pressure - Instr. Air, Low	263749	lbs
High Pressure - N2	263746	lbs
High Pressure - Instr. Air, High	263746-IA	lbs
