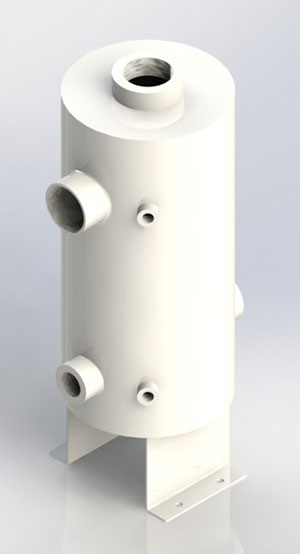

Discharge Separators

Discharge separators are available for many sizes of liquid ring pumps. All models can be fitted with optional level gauges and switches. Each separator has multiple ports for ease of installation on existing systems. HDPE models are suitable for water sealed systems, while the larger steel models can be used on both water and oil sealed systems. Also call us for oil mist eliminators for your oil sealed system.

Spec Sheet
Discharge Separators
Gallons 8 13.5 15 30 60
Part # 222770 222771 248548 248541 248546
Material PLASTIC PLASTIC STEEL STEEL STEEL
Diameter 11" 12" 12" 16" 20"
Height 25" 28" 37" 40" 54"
Inlet/Discharge 2" 3" 3" 4" 5"
Weight 9 lb. 12 lb. 53 lb. 102 lb. 175 lb.
Optional Level Switch & Housing 211151 211151 211151 211151 211151
Level Switch Only 211155 211155 211155 211155 211155
